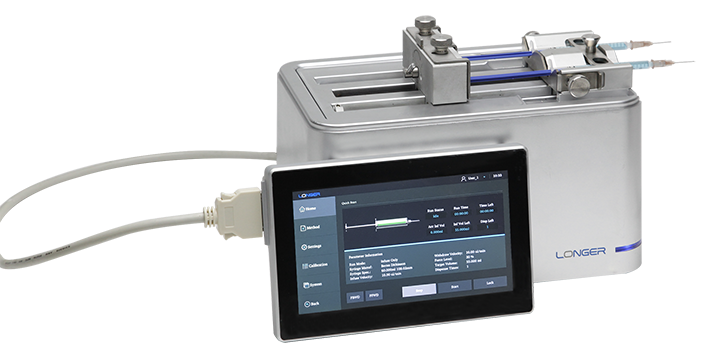

dLSP510 Digitale Labor-Spritzenpumpe - 1 Kanal

weitere anzeigen ...

Ethernet- und drahtlose Kommunikation (WLAN/Bluetooth) integriert.

Akzeptiertes Spritzenvolumen: 0,5 µL – 60 ml

Lineare Rate (µm/min-mm/min): 0,0833–180

Eine optionale PC-Software und Android-App ermöglichen die Fernsteuerung und -überwachung.

Enthält 7-Zoll-Touchscreen mit intuitiver grafischer Benutzeroberfläche.

Benutzerdefinierte Parameter können schnell konfiguriert und  Parametermethoden gespeichert werden.

Software und Firmware Updates zum Download.

ca. 2-3 Wochen
Nur noch %1 verfügbar
Artikelnr.
dLSP510
$ 3.284,40

Sie benötigen größere Mengen? Gerne erstellen wir Ihnen ein individuelles Angebot. Angebot jetzt anfragen

Spezifikationen

Work mode Infusion only, withdrawal only, infusion/withdrawal, withdrawal/ infusion, auto repeated, programming (on dedicated PC software)
Number of channel 1
Pusher advance per microstep 0.03255μm/μstep
Linear speed 0.0833μm/min-180mm/min
Step speed 23.4375 sec/μstep-10.85 μsec/μstep
Linear travel accuracy (Rated) ±0.5%
Linear travel CV(Rated) ±0.05%
Linear force (Rated) 40lbs/18kg @ 100% force selection
Motor and drive 1.8° step motor with 1/64 microstepping
Syringe 0.5uL-60mL
User-defined syringe Travel ≤108mm
OD ≤31.5mm
Display 7Inch, 1024x600,IPS HD LCD (optional)
Language Chinese or English
Control mode Tooch screen control, dedicated PC or Android App control,footswitch control,RS485 communication control
Interface RS485(optional), USB-B,USB-A,Wifi, bluetooth, Ethernet,footswitch
3 outputs- solid state relay signal,2 inputs-switch signal or TTL signal,4-20mA signal(optional)
Wireless connectivity(optional) Wifi,bluetooth
Programming function Parameter configured based on work flow: constant,ramp,loop,delay,repeat,I/O output trigger,I/O event input trigger,tooch screen trigger
Calibration Improve flow rate/ dispensing volume precision and accuracy
Parameter method Parameter methods can be stored and easily recalled
Real time clock Date and time can be set
Audible alarm For keypad clicks, end of run, near end of run, power on, motor stall, calibration reminder, etc.
Voice reminder N/A
Intelligent diagnosis N/A
Screen lock To prevent misoperation
User access control Three levels of user accesses(administrator,developer,operator),in line with safety management requirement(21CFR Part 11)
Predictive maintenance Real-time monitoring of pump running status providing information such as alarms, regular maintenance, predictive maintenance
Log record Record the complete operation history of the pump, and can be exported directly
Electronic signature and audit trail N/A
Support 3Q(IQ/OQ/PQ) Meet GMP requirement
EMC CE (TUV) certified
Deminsion(L*W*H) Drive unit: 260mm*185mm*180mm,Controller: 190mm*123mm*33mm
Power supply AC 100V-240V/30W 50/60Hz
Operating condition Temperature: 5℃-40℃, Relative humidity<85%
IP rating IP31
Weight Drive unit: 3.5kg
Controller: 0.4kg



Spritzen

Product Model (Product Code) dLSP510
dLSP520
dLSP540
dLSP5A0
dLSP510 Pro
dLSP520 Pro
Syringe Syringe ID (mm) Reference flow rate (nL/min-mL/min)
0.5ul 0.1 0.0007-0.0014 0.0003-0.0007
5ul 0.35 0.008-0.017 0.004-0.008
10ul 0.5 0.016-0.035 0.008-0.017
25ul 0.8 0.042-0.090 0.020-0.043
50ul 1.1 0.079-0.171 0.038-0.082
100ul 1.6 0.167-0.362 0.080-0.174
500ul 3.25 0.691-1.493 0.332-0.717
1ml 4.72 1.458-3.150 0.700-1.512
2ml 9 5.299-11.451 2.545-5.497
5ml 13.1 11.227-24.261 5.391-11.645
10ml 16.6 18.028-38.956 8.657-18.699
20ml 19 23.618-51.035 11.341-24.497
30ml 23 34.609-74.786 16.619-35.897
60ml (510 series) 29.14 55.554-120.044 26.677-57.621
